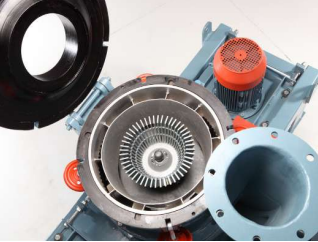

Air Classifying Mills

Our classifying mills integrate grinding, classifying, conveying and collecting operations. They are designed for grinding hygroscopic, heat sensitive and explosive materials in inert gas/closed loop system with dry, chilled air. Our classifiers are engineered to consistently produce steep particle size spectrum distributions that are uniform and homogeneous.

Boiler & Thermic Fluid Systems

Our offerings include:-

  • Modern, economical and simple grinding and classifying in one machine
  • Dust free operation
  • High collection efficiency
Mill Main Motor HP Rotor RPM Classifier Motor HP Classifier RPM
ACM 5 5 9400 1 5400
ACM 10 10 7000 1.5 5000
ACM 30 30 4600 7.5 2500
ACM 30 ID 30 5000 7.5 3000
ACM 60 60 3000 15 2000
ACM 60 ID 60 3500 15 3000
ACM 75 75 3500 15 3000
ACM 75 ID 75 3500 15 3000
ACM 100 100 3000 15 2000
ACM 100 ID 100 3500 15 3000
ACM 120 120 2200 20 1800
ACM 150 150 2200 25 1800
ACM 200 200 2200 40 1800
ACM 250 250 2200 40 1800
ACM 300 300 2200 50 1800
