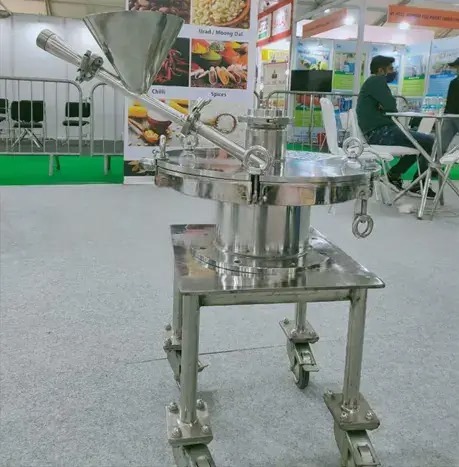

SpiroJet Air Jet Mill

SpiroJet grinds and classifies powders to micron and sub-micron sizes in a single operation, in a single grinding chamber using a one-of-a-kind fluid energy grinding technology.

Boiler & Thermic Fluid Systems

Learn More

Features :-

Minimized product contamination
No heat build-up: process heat-sensitive materials
No lubrication contamination
Reduces agglomeration by producing spherical particles

SPIRO Standard Series
Diameter (Inches)	4	8	12	16	20	24	30	36
Capacity (Kg/Hr)	0.3-10	5.3-40.0	20-100	90-200	90-200	120-350	180-500	350-700
Max grind Air flow(m³/hr)	75	225	455	600	770	1360	1775	2345
Air consumption values are maximum at 7 bar pressure
