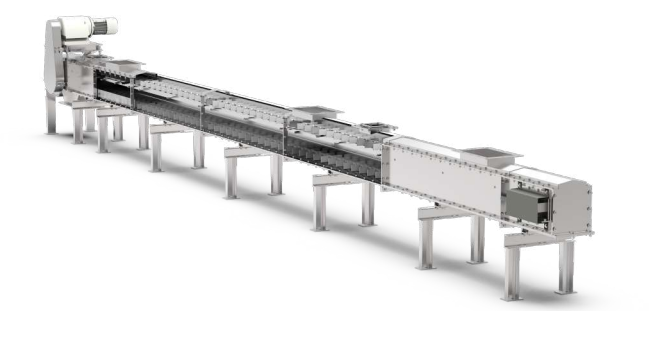

Our Drag Chain Conveyors are designed for moving bulk materials in enclosed tracks. They ensure consistent, dust-free conveyance of materials, such as cement, coal, or ash, even over long distances.
It can be designed as per application and tailored to customer requirement. They work by using two parallel strands of chain with flights or attachments connected to them. These chains move along the conveyor path, dragging materials inside an enclosed trough for a maximum capacity of 3000 TPH
| Specifications | |||||||
|---|---|---|---|---|---|---|---|
|
Conveyor Model |
Chain Size |
Capacity (m3/hr) |
Trough Width (mm) |
Trough Height (mm) |
Chain Speed (m/min) |
Maximum Length (m) |
Maximum Incline |
| DC-200 | 200 mm | 10-30 | 300 | 250 | 5-20 | 20-40 | 10° |
| DC-300 | 300 mm | 30-60 | 400 | 300 | 5-25 | 30-50 | 15° |
| DC-400 | 400 mm | 60-120 | 500 | 400 | 5-30 | 40-60 | 20° |
| DC-500 | 500 mm | 120-200 | 600 | 500 | 5-35 | 50-70 | 25° |
| DC-600 | 600 mm | 200-350 | 700 | 600 | 5-40 | 60-90 | 30° |
